| Gear series | 4 |
| Reduction ratio | 100, 150, 165, 200, 350, 505 |
| Maximum allowable continuous torque kgf.cm | 10 |
| Maximum allowable instantaneous torque kgf.cm | 20 |
| Efficiency% | 28 |
| The length of the motor | The total length of the motor depends on the specified motor |

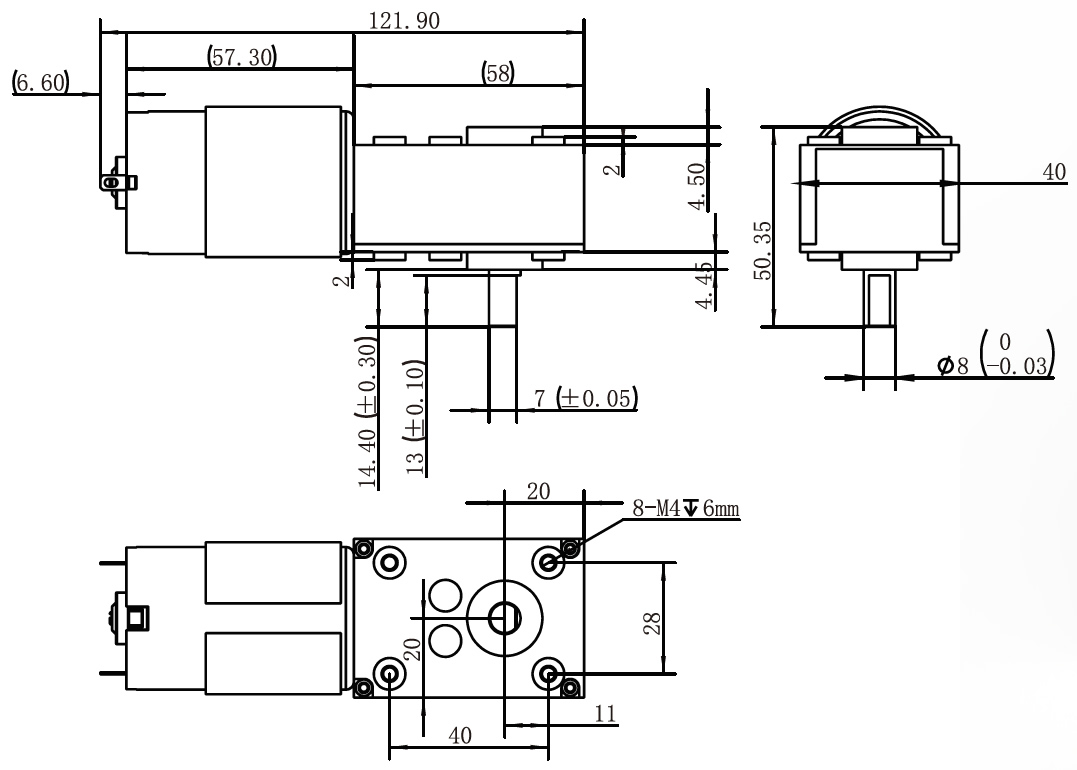

| outer diameter dimension | 40*58mm |
| Gearbox type | Square gearbox |
| Output shaft material | stainless steel |
| Output end bearing type | Oil bearing/ball bearing |
| Gear material | Powder metallurgy, machined steel teeth |
| Shell material | zinc alloy die casting |
| Working humidity range | 20%-85%RH |
| Working temperature range | -30℃~+100℃ |
| Our company can design and produce related products according to customer requirements | |
